NX Route Setting

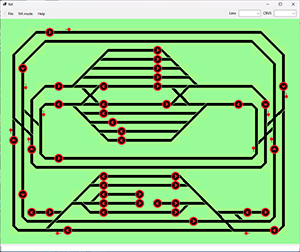

Test version of a simple program to control a layout using an NX panel.
Ver 1.0 Lenz track power control button.
LH90's should have SYS 9 set to prevent the Emergency stop button
turning off the track power. For LH100's this is the default setting.
Ver 0.9 Couple of bug fixes, more in help, point addresses corrected for TWES F5 and M5, M4.
Board F1 (top left) tested and points are OK, crossovers working. Track circuits not working.
12 Volt regulator may be faulty.
Board M1 (lower right) three way point inverted, change 45 and 46 to positive.
Ver 0.8 Crossovers added. Instead of wiring the crossovers together
and reducing the power to each, it can be done in the track properties of both points.
Also the program now stores the state of points after they are moved to save time and CDU power.
Simple text labels added, move track icons is a little better, and delete added to route tables.
Also works with the simpler LI100 USB interface from https://www.dcc-decoders.com/.
Ver 0.7 Now with a 3 way point icon and signals for bi-directional track.
Ver 0.5 Hires HiDpi screens now supported and track plan scaling added. Small Lenz bug fix.
An early attempt at moving track added.
Download and extract all of the files into an empty directory.
